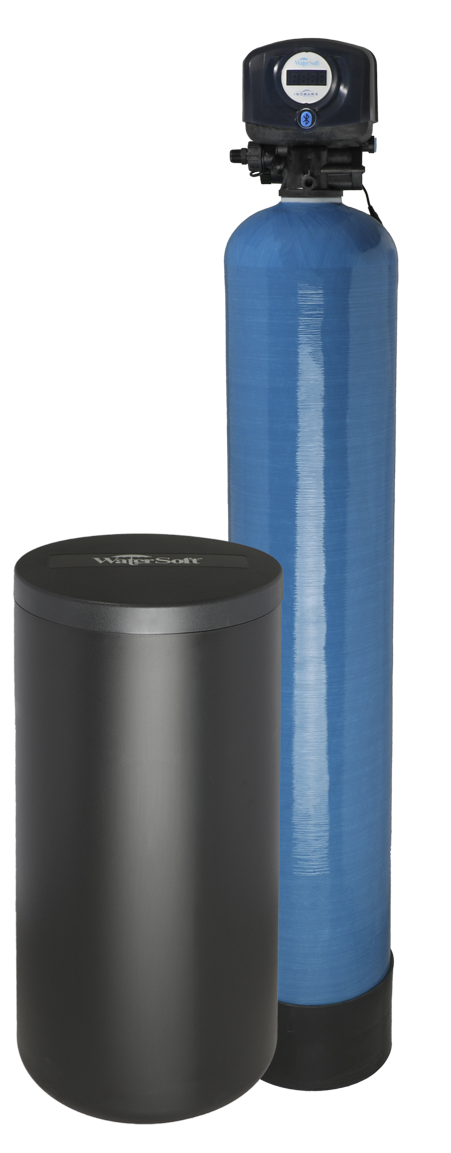

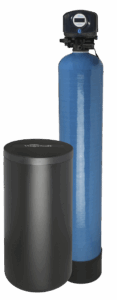

High Capacity Softener

  • Eliminates hardness (Calcium & Magnesium)
  • High-Quality Fine Mesh for increased Iron / Manganese Reduction
  • Isobar™ III  control valve
  • Legacy View Bluetooth enabled control valve for advanced diagnostics and simplified setup
  • Simple 9-volt battery back-up keeps electronic meter active and will motor control valve to shut off position if in regeneration
    during power failure
  • On-demand meter providing data and history
  • Adjustable Cycle Times
  • Calendar Day Override
  • Proprietary two valve bypass with 1” MNPT Connections
  • Weather / Insect Resistant One-Piece Slide Cover
  • High Flow 1” distributor
  • Features Vortech™ tank technology maximizing capacity and efficiency
  • Treated Water Refill with pre-brine option
  • Standard brine tank size 16” X 33”
  • High Flow brine safety float assembly, overflow fitting, grid plate, and brine well
Category:
Back to Products

Max Capacity 35,000 grains / 52,000 grains / 70,000 grains

Service Flow Rate 10.0 / 11.0 / 12.0

Space Required 16 X 27 X  56 / 16 X 28 X 62 / 16 X 30 X 60

Approximate Shipping Weight 130 / 163 / 204

WaterSoft High Capacity Softener – Sales Sheet

Softener Brochure

Isobar III Softener Valve, Installation and Operation Manual
